173416 PKE-XZMR(230V50HZ)

General specifications
Product name
Eaton Moeller® series PKE Overload relay module
Part no.
PKE-XZMR(230V50HZ)
EAN
4015081698172

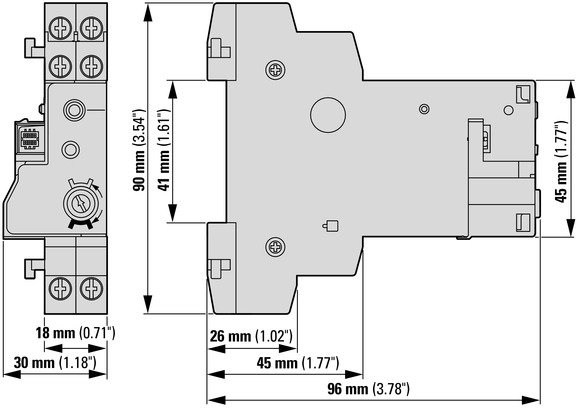

Product Length/Depth
105 millimetre
Product height
50 millimetre
Product width
105 millimetre
Product weight
0.079 kilogram
Compliances
CE
Product Tradename
PKE
Product Type
Accessory
Product Sub Type
Overload relay module
Catalog Notes
1 N/C: for switching off the contactor
1 N/O: for trip indication
External control voltage supply required.
Features & Functions
Features
Status display via LED
Functions
Adjustable manual/auto reset
Overload relay function (the motor-protective circuit-breaker will not trip in the event of an overload)
General information
Class
Other
Lifespan, electrical
200,000 Operations
Lifespan, mechanical
5,000,000 Operations
Mounting method
Direct attachment
Overvoltage category
III
Pollution degree
3
Rated impulse withstand voltage (Uimp)
6000 V AC
Voltage type
AC
Ambient conditions, mechanical
Mounting position
Right side (of PKE motor-protective circuit-breakers with advanced PKE-XTU…A… trip blocks)
Climatic environmental conditions
Ambient operating temperature - min
-25 °C
Ambient operating temperature - max
55 °C
Terminal capacities
Terminal capacity (solid/flexible with ferrule)
0.75 - 2.5 mm²
Terminal capacity (solid/stranded AWG)
18 - 14
Electrical rating
Operational voltage
0.8 - 1.1 x Us (alternating voltage)
Rated operational current (Ie) at AC-15, 220 V, 230 V, 240 V
1.5 A
Rated operational voltage (Ue) at AC - max
500 V
Safe isolation
440 V, Between auxiliary contacts and main contacts, According to EN 61140
Short-circuit rating
Short-circuit protection rating
6 A gG/gL, Fuse, Contacts
Magnet system
Rated control supply voltage (Us) at AC, 50 Hz - min
230 V
Rated control supply voltage (Us) at AC, 50 Hz - max
230 V
Rated control supply voltage (Us) at AC, 60 Hz - min
0 V
Rated control supply voltage (Us) at AC, 60 Hz - max
0 V
Rated control supply voltage (Us) at DC - min
0 V
Rated control supply voltage (Us) at DC - max
0 V
Contacts
Number of auxiliary contacts (change-over contacts)
0
Number of auxiliary contacts (normally closed contacts)
1
Number of auxiliary contacts (normally open contacts)
1
Number of contacts (normally closed contacts)
1
Number of contacts (normally open contacts)
1
Power consumption
Power consumption, pick-up, 50 Hz
1.7 VA, Pull-in power, Coil in a cold state and 1.0 x Us
Power consumption, pick-up, 60 Hz
1.7 VA, Pull-in power, Coil in a cold state and 1.0 x Us
Design verification
Heat dissipation capacity Pdiss
0 W
Heat dissipation per pole, current-dependent Pvid
0.017 W
Rated operational current for specified heat dissipation (In)
1.5 A
Static heat dissipation, non-current-dependent Pvs
0.54 W
10.2.2 Corrosion resistance
Meets the product standard's requirements.
10.2.3.1 Verification of thermal stability of enclosures
Meets the product standard's requirements.
10.2.3.2 Verification of resistance of insulating materials to normal heat
Meets the product standard's requirements.
10.2.3.3 Resist. of insul. mat. to abnormal heat/fire by internal elect. effects
Meets the product standard's requirements.
10.2.4 Resistance to ultra-violet (UV) radiation
Meets the product standard's requirements.
10.2.5 Lifting
Does not apply, since the entire switchgear needs to be evaluated.
10.2.6 Mechanical impact
Does not apply, since the entire switchgear needs to be evaluated.
10.2.7 Inscriptions
Meets the product standard's requirements.
10.3 Degree of protection of assemblies
Does not apply, since the entire switchgear needs to be evaluated.
10.4 Clearances and creepage distances
Meets the product standard's requirements.
10.5 Protection against electric shock
Does not apply, since the entire switchgear needs to be evaluated.
10.6 Incorporation of switching devices and components
Does not apply, since the entire switchgear needs to be evaluated.
10.7 Internal electrical circuits and connections
Is the panel builder's responsibility.
10.8 Connections for external conductors
Is the panel builder's responsibility.
10.9.2 Power-frequency electric strength
Is the panel builder's responsibility.
10.9.3 Impulse withstand voltage
Is the panel builder's responsibility.
10.9.4 Testing of enclosures made of insulating material
Is the panel builder's responsibility.
10.10 Temperature rise
The panel builder is responsible for the temperature rise calculation. Eaton will provide heat dissipation data for the devices.
10.11 Short-circuit rating
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.12 Electromagnetic compatibility
Is the panel builder's responsibility. The specifications for the switchgear must be observed.
10.13 Mechanical function
The device meets the requirements, provided the information in the instruction leaflet (IL) is observed.

Technical data ETIM 8.0

Low-voltage industrial components (EG000017) / Electronic overload relay (EC001080)
Electric engineering, automation, process control engineering / Low-voltage switch technology / Overload protection device / Electronic overload relay (ecl@ss10.0.1-27-37-15-02 [AKF076014])
Adjustable current range
0 - 0 A
Mounting method
Direct attachment
Type of electrical connection of main circuit
Other
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage Us at AC 50HZ
230 - 230 V
Rated control supply voltage Us at AC 60HZ
0 - 0 V
Rated control supply voltage Us at DC
0 - 0 V
Release class
Other
Voltage type for actuating
AC
Reset function automatic
Yes
Reset function input
No
Reset function push-button
Yes
